Lightmap Generator

A lightmap baking tool I developed as part of my Bachelor’s thesis, focused on precomputed global illumination in 3D scenes. It supports interactive scene visualization, light setup, and lightmap baking, with global illumination computed using a CPU-based path tracer. Results are generated progressively and can be inspected during the bake.

The thesis goes beyond the implementation, it documents both the underlying theory and the complete lightmapping pipeline, making it a practical reference for understanding how these systems work.

Results

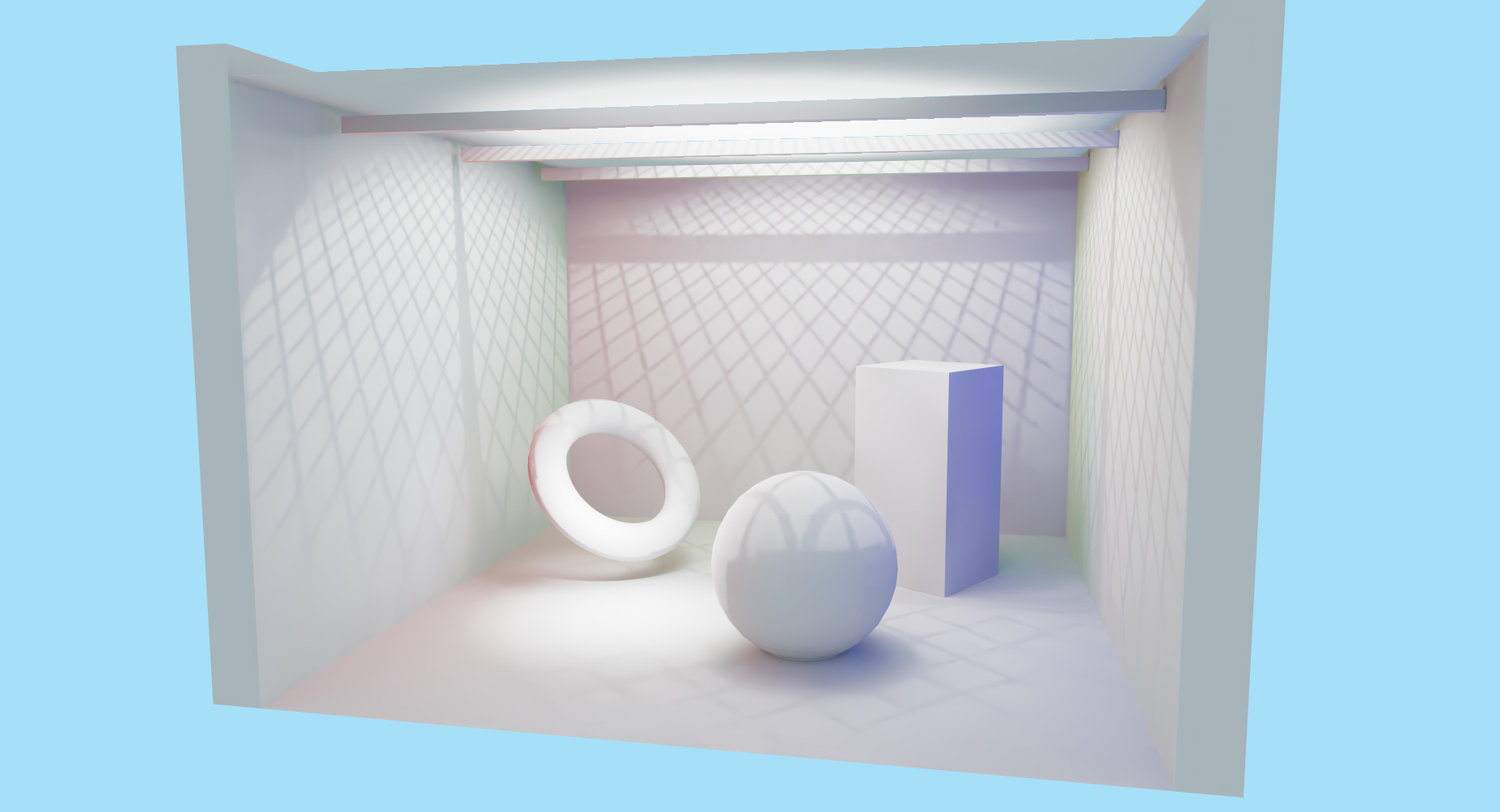

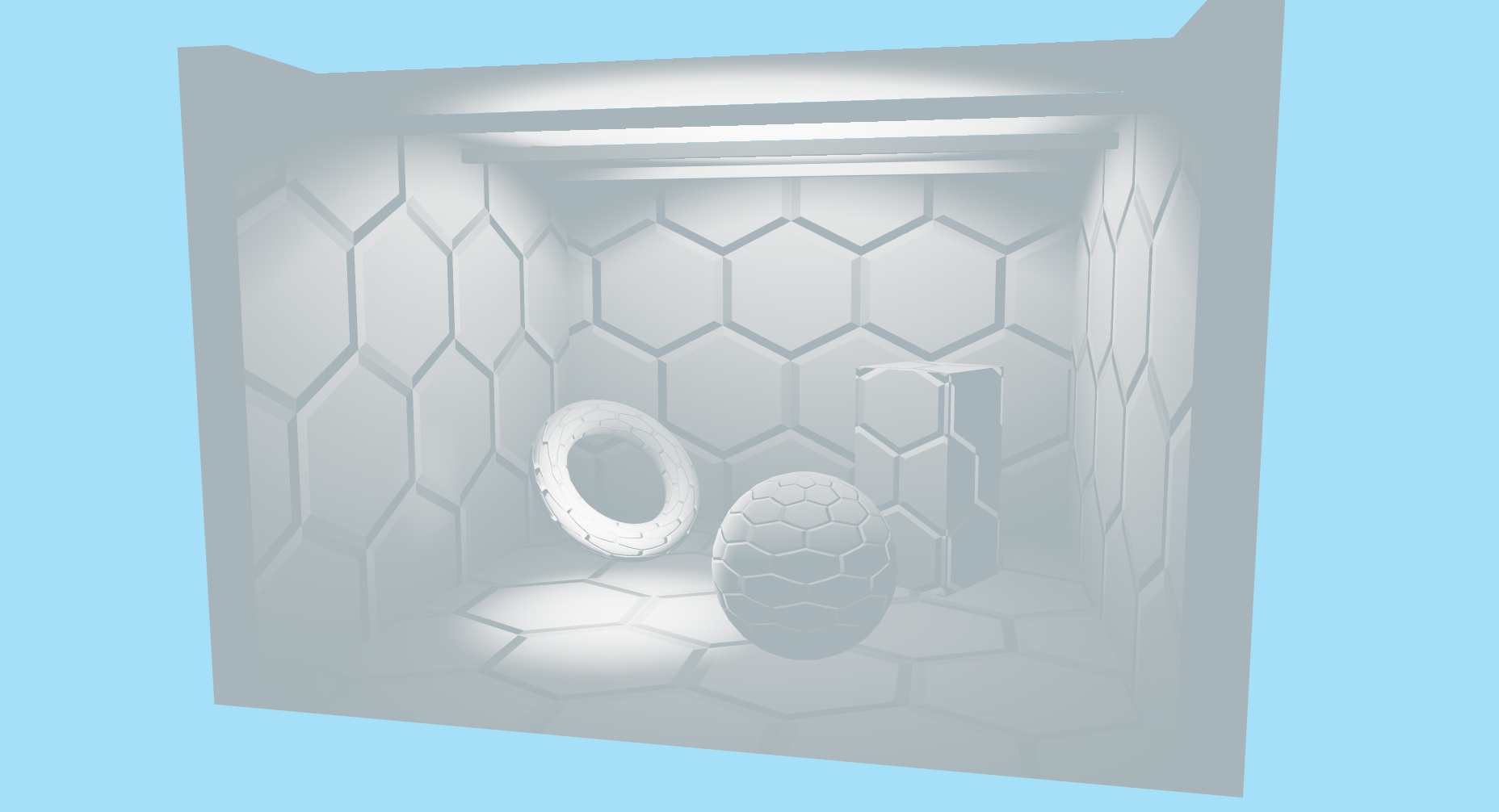

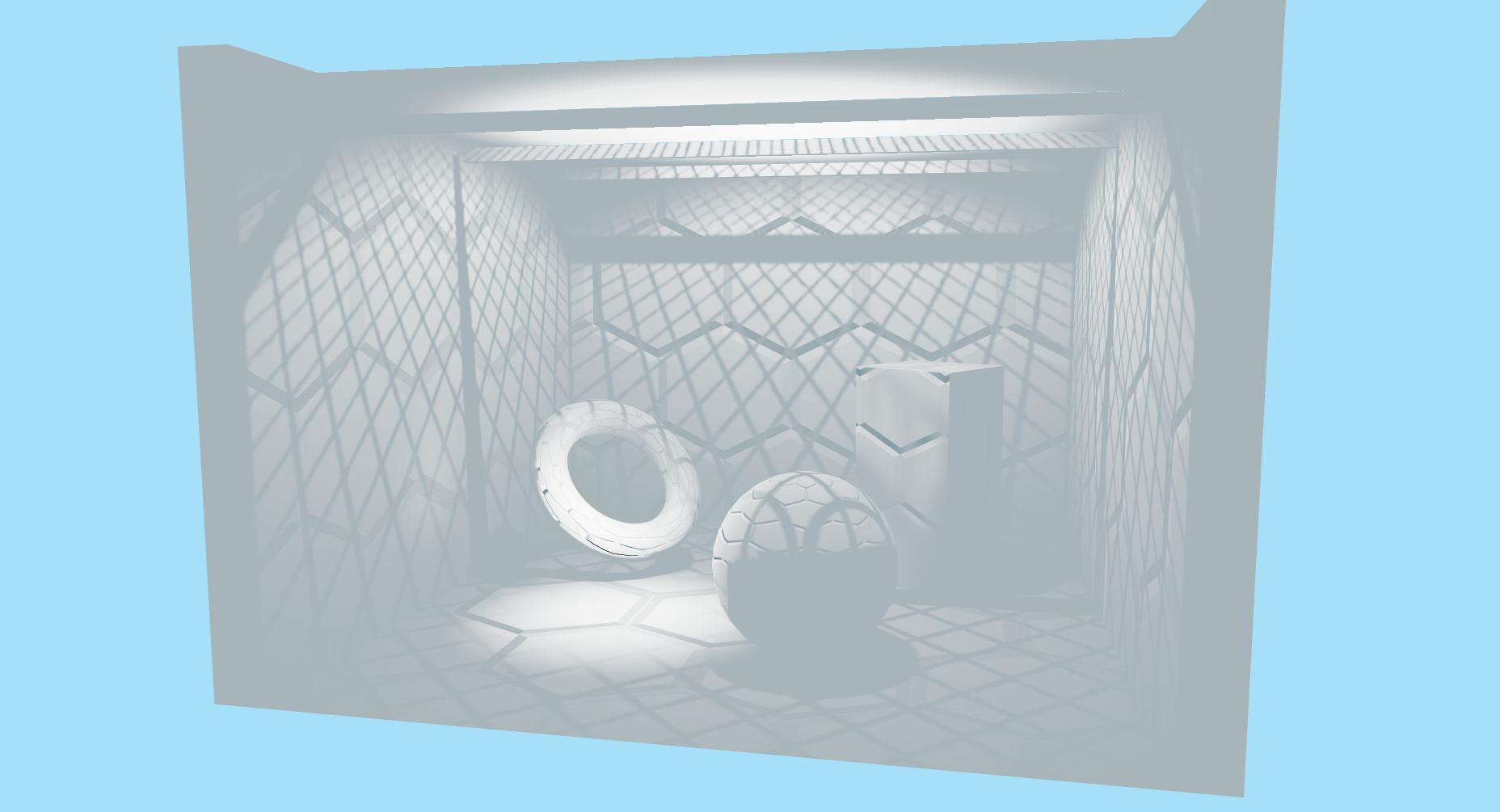

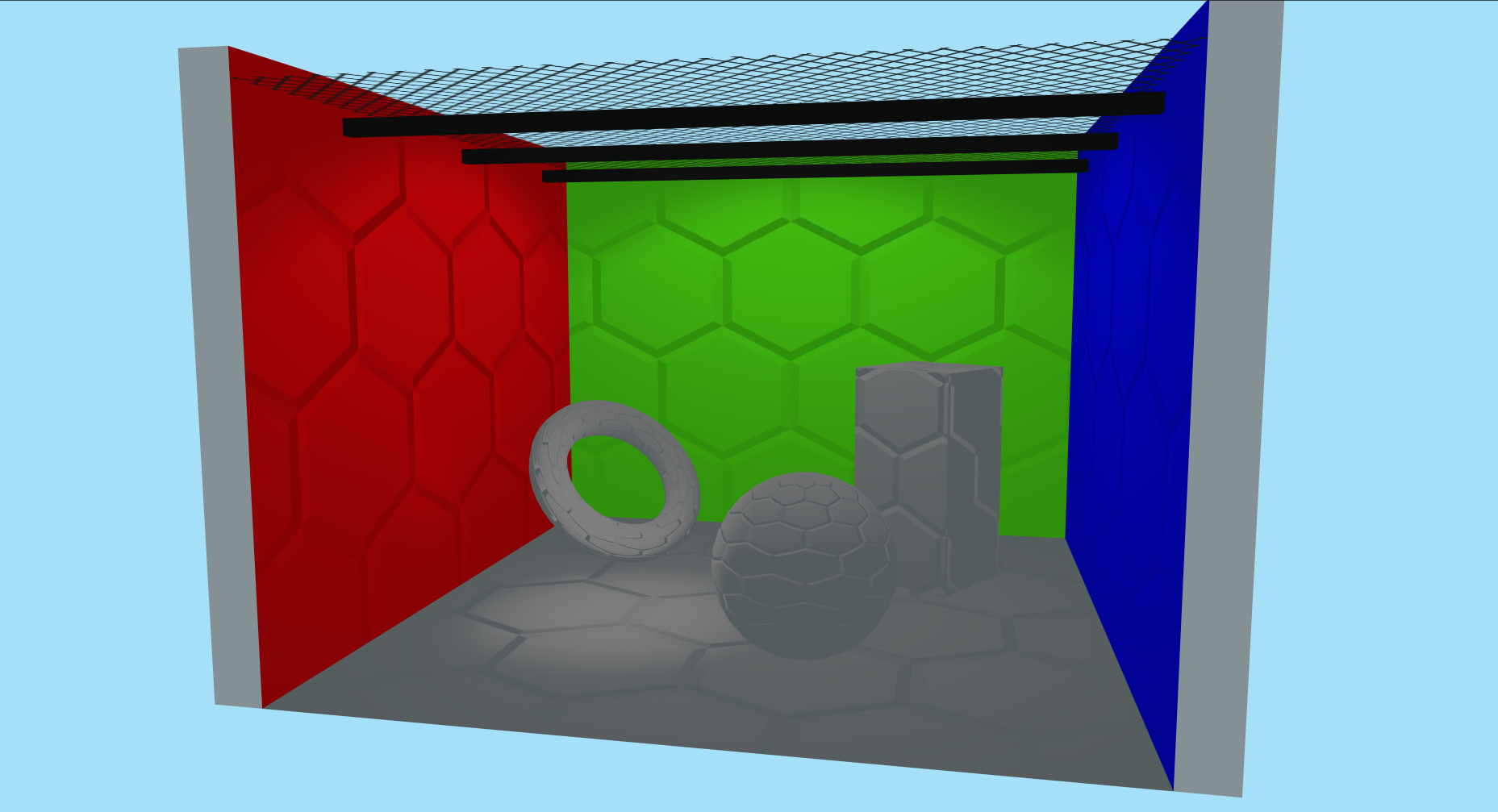

To demonstrate the capabilities of the tool, a test scene inspired by The Baking Lab (Neubelt, Pettineo) was used, as it provides a controlled setup for evaluating different lightmapping approaches.

The scene is designed to highlight different lighting effects and the strengths of individual lightmap representations.

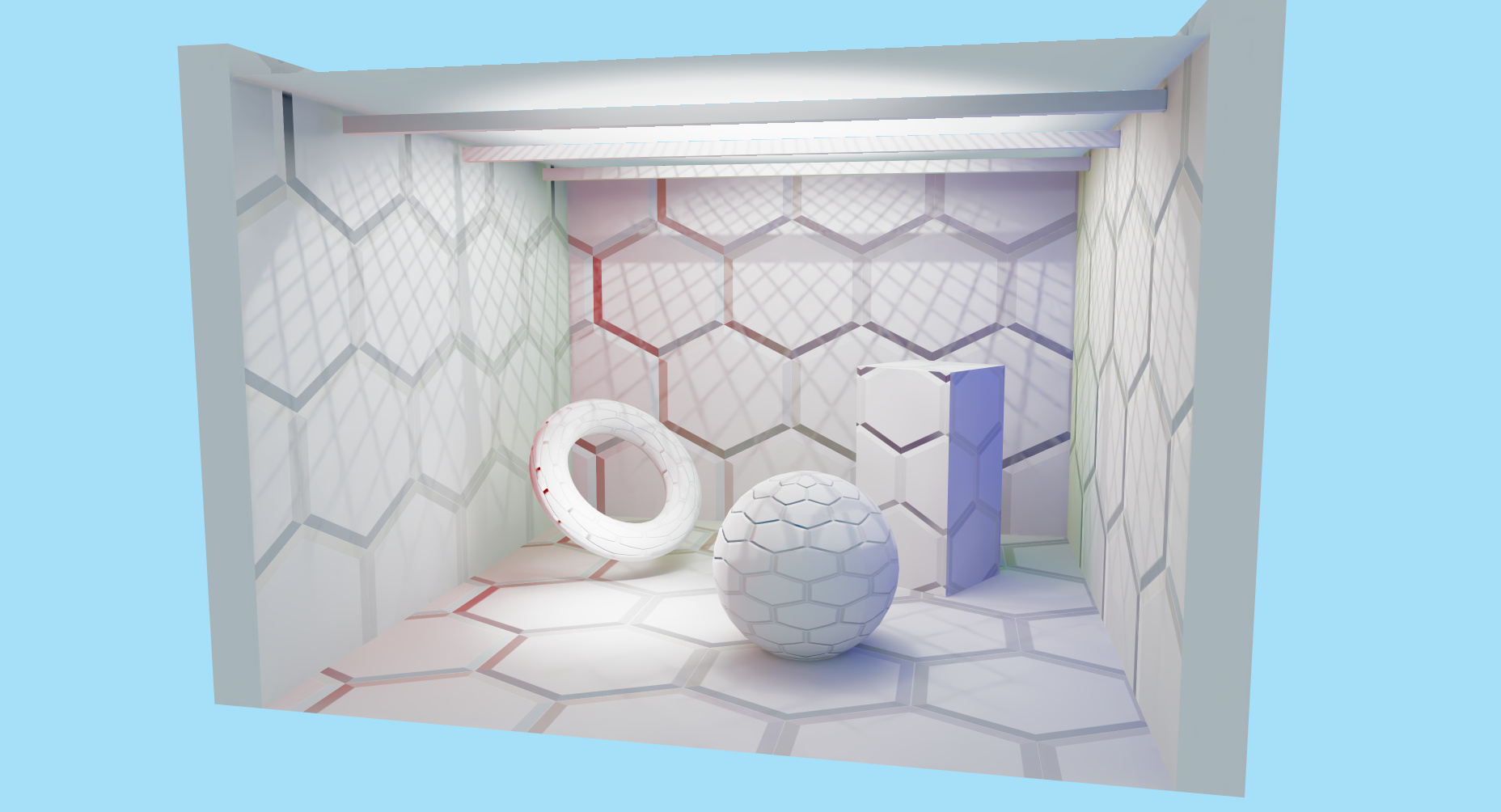

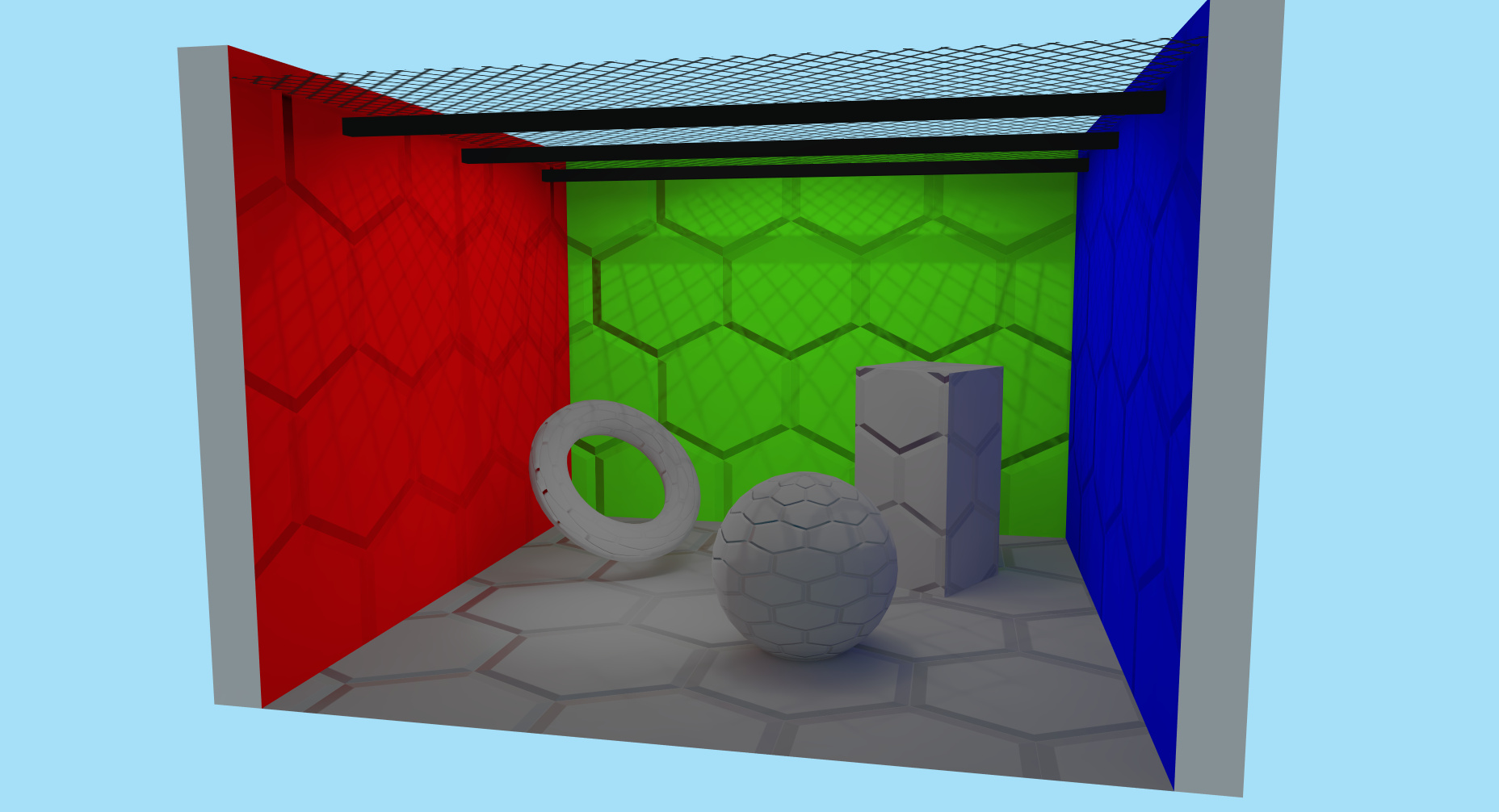

• Indirect lighting is achieved through light bouncing off differently colored walls
• Shadowing is demonstrated using small occluding objects
• Transparency is showcased using a partially transmissive mesh (a fence above the scene)
• Directional lightmaps enable lighting reconstruction on normal-mapped surfaces

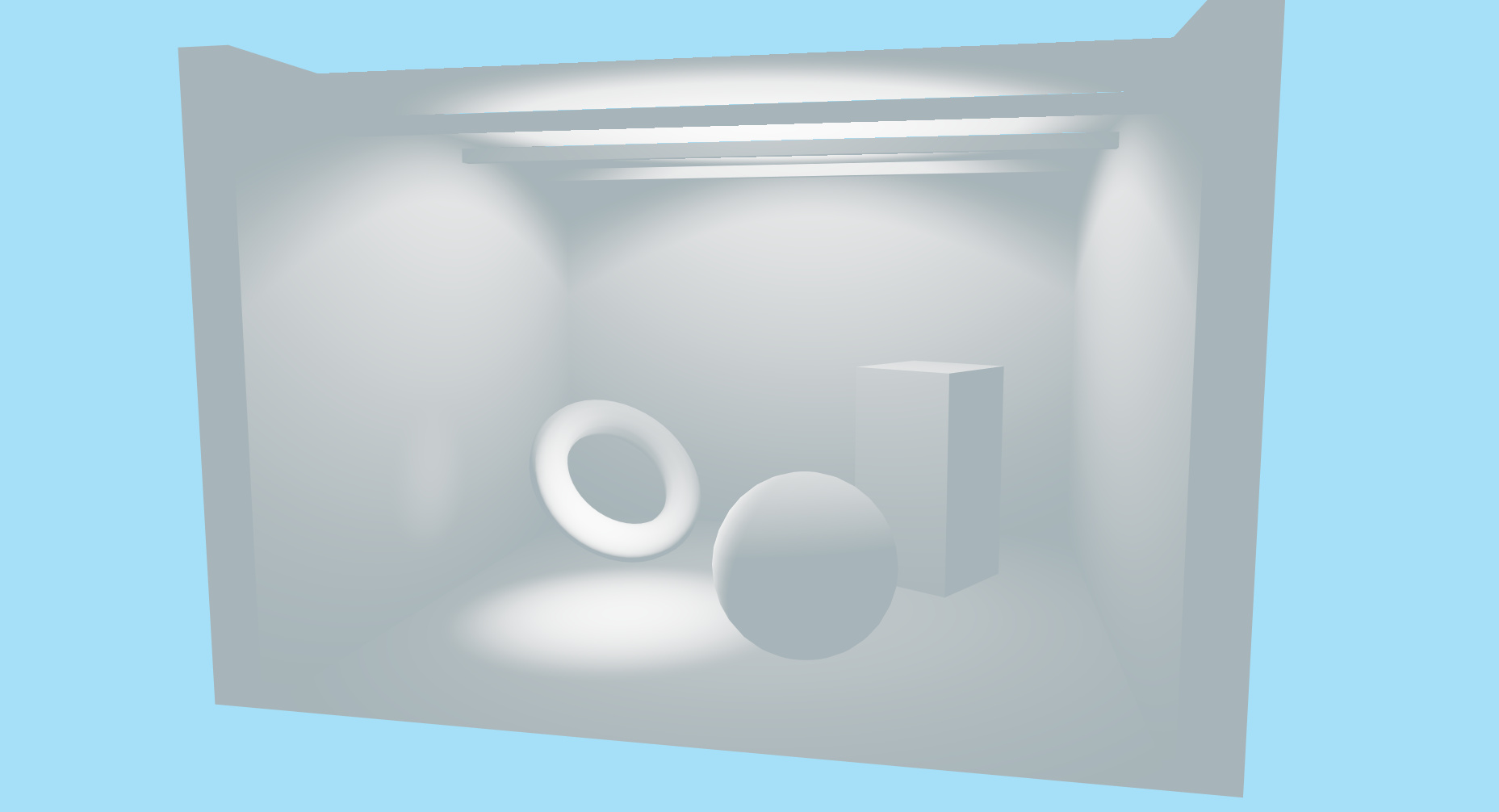

The lighting setup consists of a spot light above the scene and a point light inside it. Lightmaps are generated with 64 samples per texel and up to 4 light bounces, and are intended for use with bicubic filtering.

Lightmap Generator

‹

›

Core Approach

Global illumination is computed using a custom CPU-based path tracer, progressively accumulating samples for each lightmap texel. The integration is based on quasi-Monte Carlo methods, using low-discrepancy sequences to improve convergence compared to purely random sampling. A denoising step is applied during postprocessing to reduce Monte Carlo noise.

The implementation is limited to diffuse global illumination, assuming a Lambertian BRDF and using cosine-weighted hemisphere sampling for indirect bounces. Scenes can be lit using analytical (infinitesimal, zero-area) light sources – directional, point, and spot lights. It also supports transparency, allowing rays to pass through partially transmissive surfaces.

Computed lighting is stored in HDR lightmaps, with optional directional encoding using 3rd-order spherical harmonics to support normal mapping.

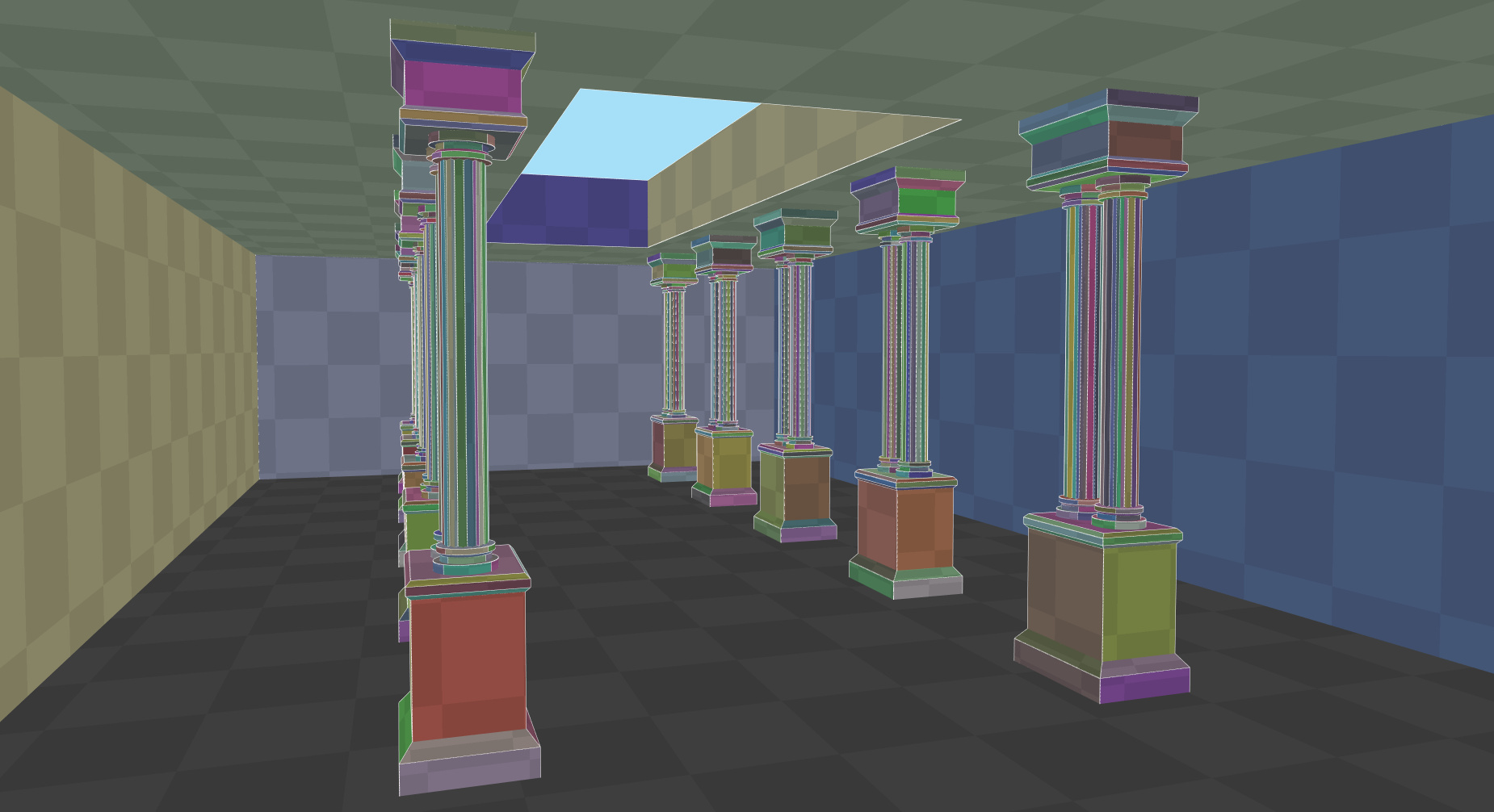

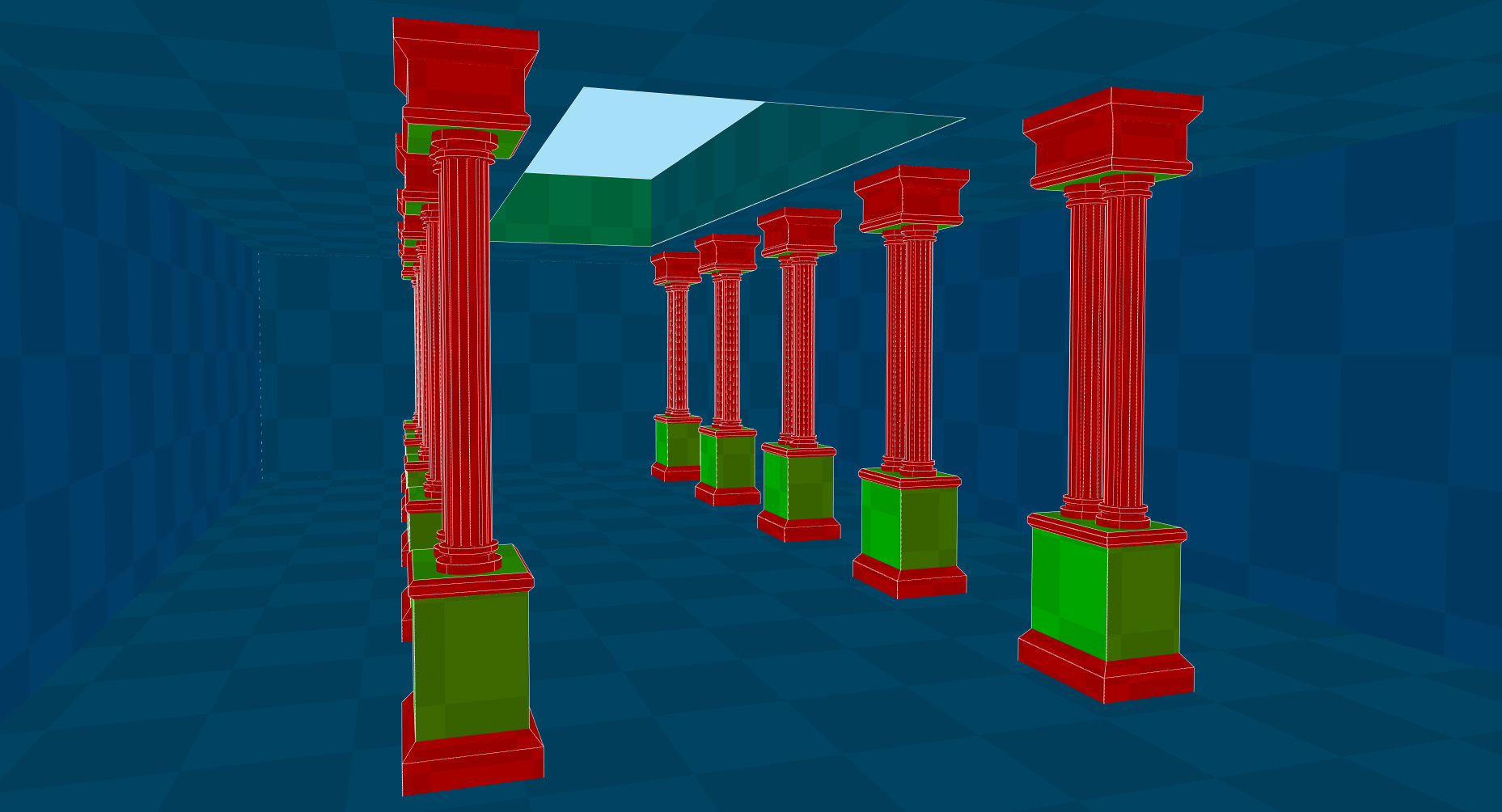

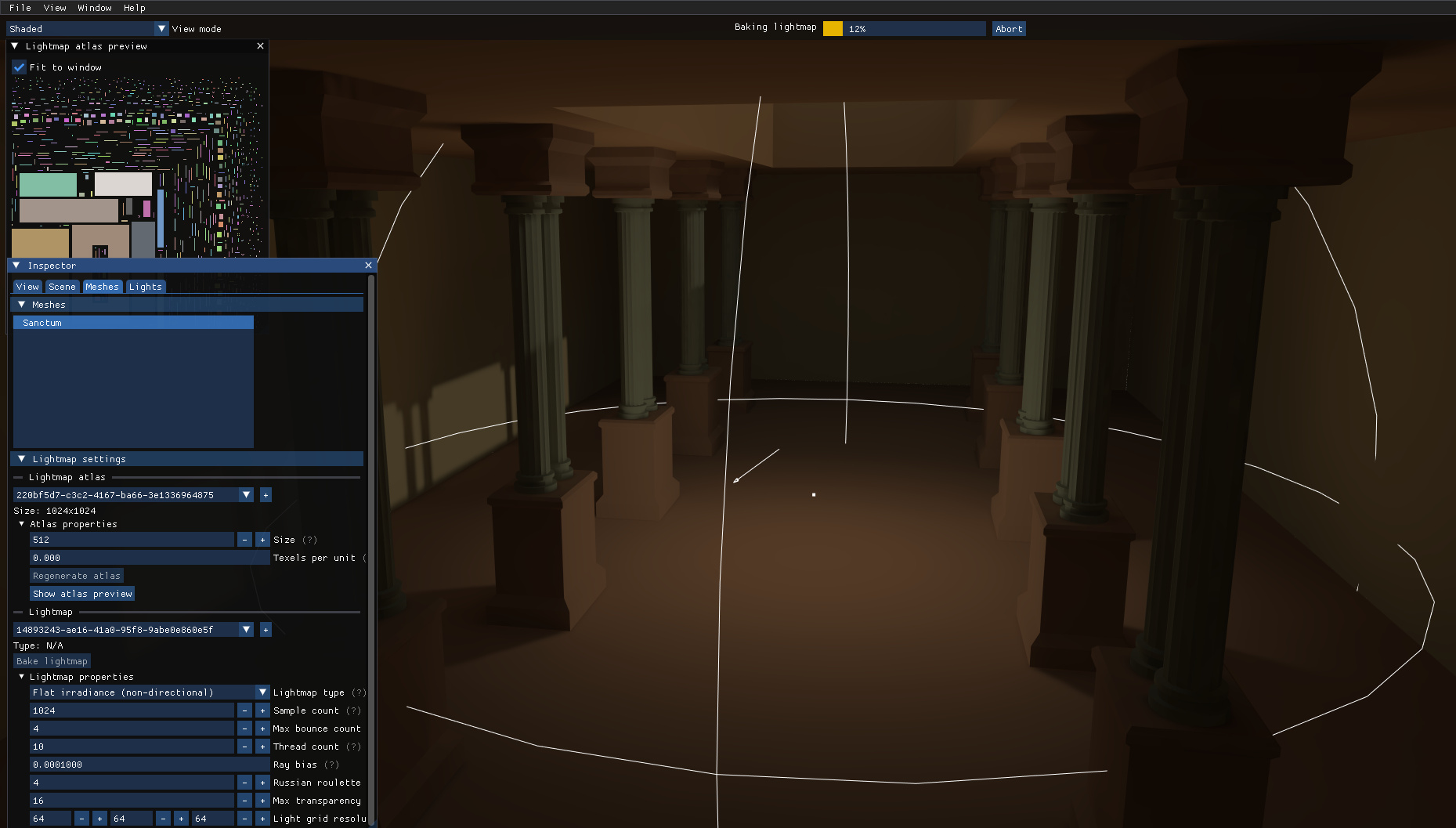

The tool uses a custom, lightweight OpenGL-based engine for visualization, with an ImGui-based UI for interaction. In addition to lit scene rendering, it provides debug views for lightmap charts and texel density directly on surfaces.

Lightmap Generator

‹

›

Lightmap atlas & UV parametrization

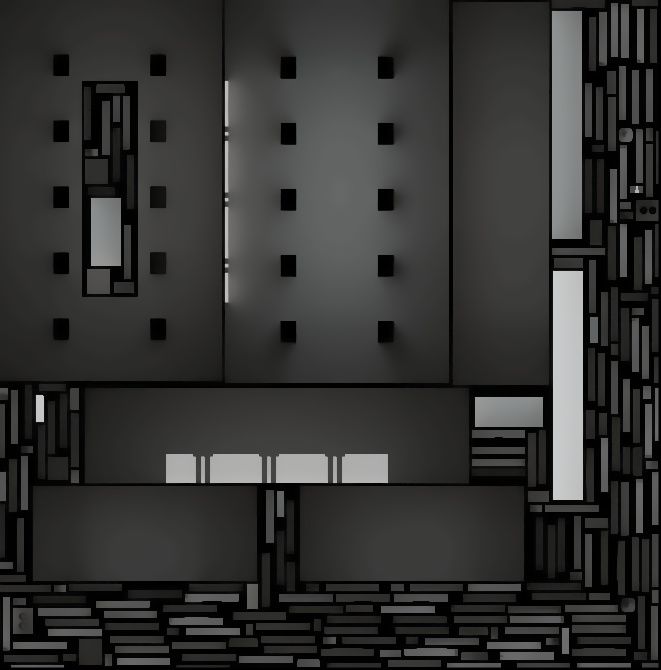

The lightmap atlas is generated using xatlas, which segments geometry into charts – typically contiguous surface regions with similar face normals – and packs them into a non-overlapping UV layout.

To support both bilinear and bicubic filtering, the atlas includes a three-texel padding (gutter), preventing light leaking between neighboring charts during texture sampling.

Acceleration structures

The tool uses two complementary acceleration structures:

• A BVH (Intel Embree) built from the scene snapshot, used to accelerate ray intersection queries during path tracing.
• A uniform 3D grid for light culling, where each cell stores the lights affecting its volume. Since lights are modeled with bounded influence (finite falloff), this allows efficient evaluation of only relevant light sources during path tracing.

Preprocessing

Preprocessing establishes the mapping between lightmap texels and surface geometry and generates sampling points for lighting evaluation. Instead of sampling only at texel centers, each texel is populated with 64 samples using a Hammersley low-discrepancy sequence.

A so-called dilation map is also generated to handle padding texels. For texels within a two-texel radius of chart boundaries, the tool precomputes mappings between fill targets and valid source texels.

Lighting computation

Global illumination is computed using a CPU-based path tracer with multi-threaded execution, where each thread processes a subset of texels. The computation is progressive, allowing intermediate results to be visualized during baking.

Primary rays are sampled using a Halton low-discrepancy sequence over the hemisphere. Secondary bounces use cosine-weighted sampling, assuming a Lambertian BRDF. The system supports transparency, allowing rays to pass through partially transmissive surfaces.

Postprocessing

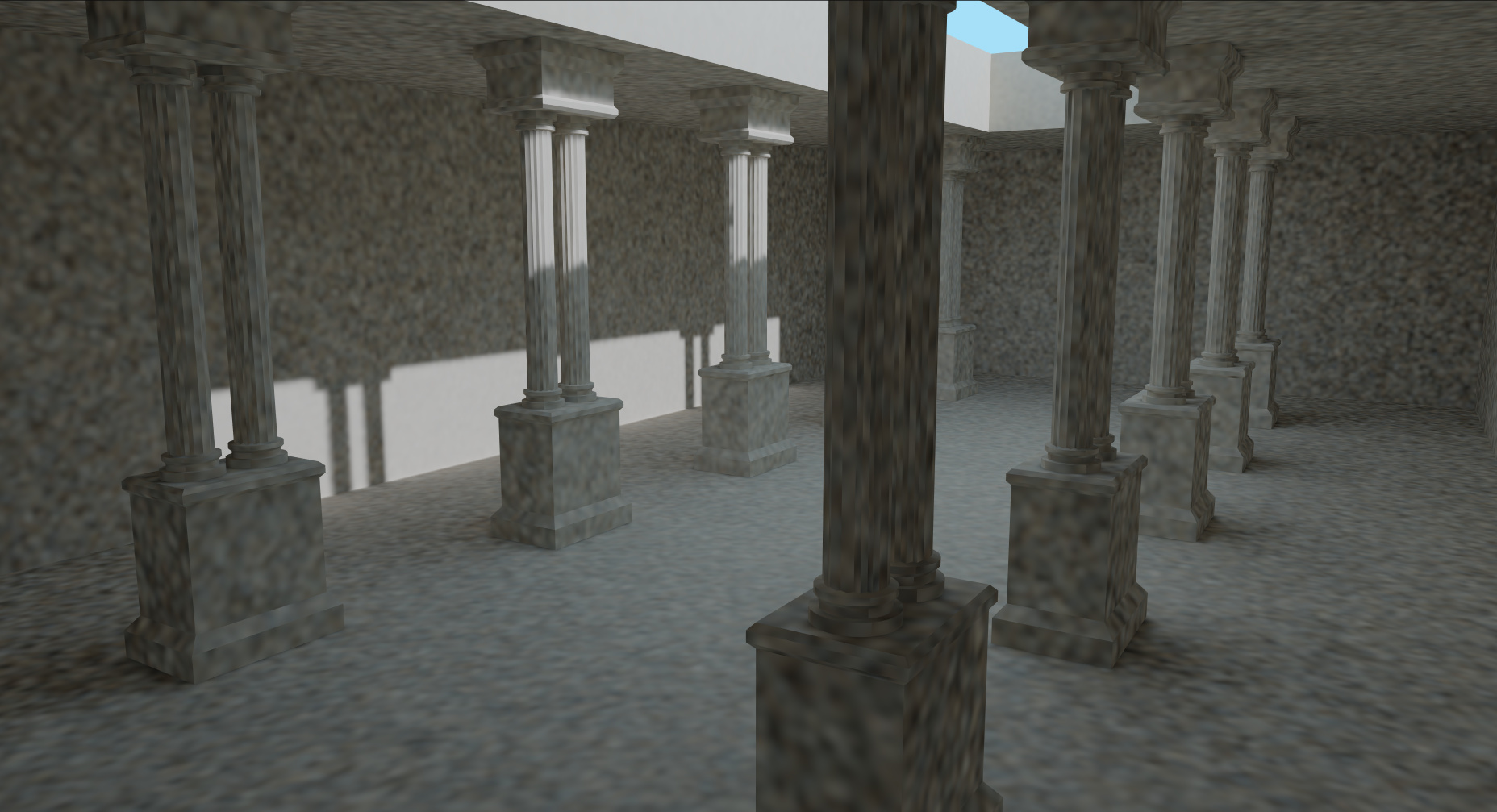

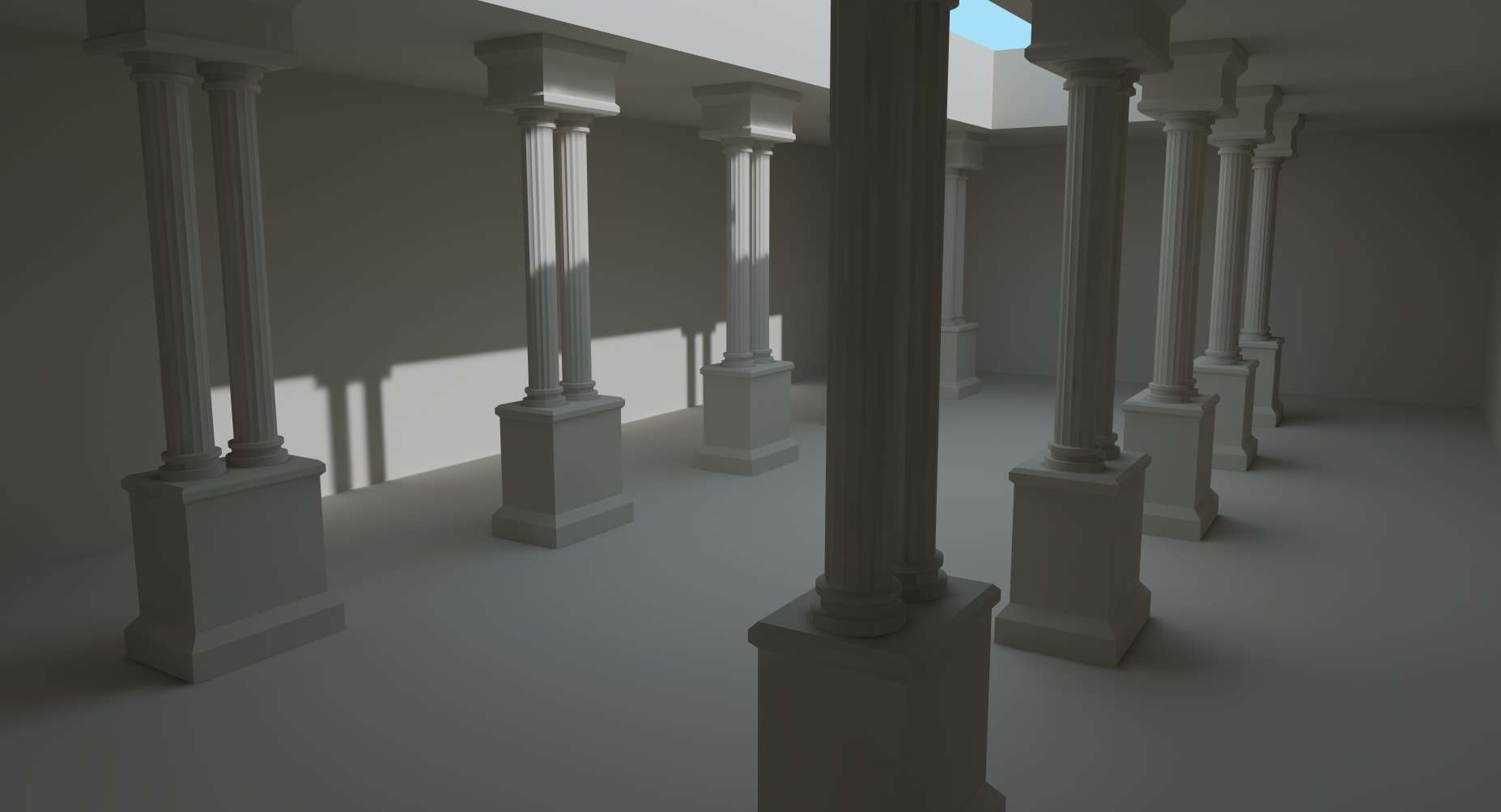

Firstly, texel dilation is performed on the GPU via a compute shader, using the precomputed dilation map. Secondly, as Monte Carlo integration naturally produces noisy results, a denoising step is applied using Intel Open Image Denoise (OIDN), running on either CPU or GPU depending on hardware availability.

Lightmap representation

The system supports two lightmap formats:

• Directional lightmaps, storing lighting using 3rd-order spherical harmonics (9 coefficients per texel / 9 textures), enabling reconstruction based on surface normals (suitable for normal mapping)
• Non-directional lightmaps, storing irradiance per texel (single texture)

  Lightmap coefficients are stored in HDR using RGBM encoding (range ⟨0, 5⟩ in gamma space), allowing them to be saved in standard PNG format while preserving dynamic range.

Limitations

While the tool is capable of producing visually convincing results, achieving high-quality output often requires iterative tuning of parameters. As a result, effective use of the tool assumes a basic understanding of lightmapping principles and their impact on the final solution.

The most significant limitation, is the absence of a dedicated solution for smoothing lighting discontinuities at chart seams. Since adjacent charts are computed independently, visible seams can appear due to differences in computed lighting coefficients. This artifact is most noticeable at lower lightmap resolutions and becomes less pronounced as resolution increases, but without explicit seam correction, it cannot be fully eliminated.

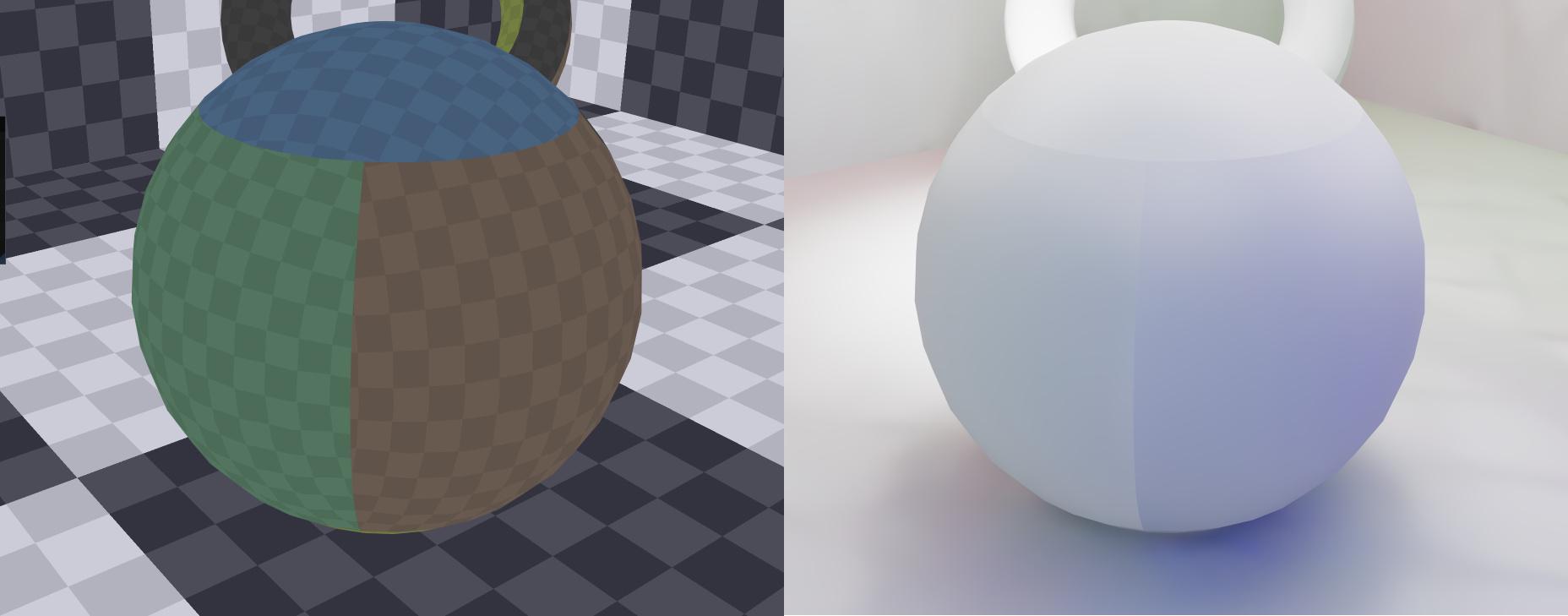

Artifact: Lighting discontinuities at chart seams.Left: chart segmentation (color-coded). Right: generated lightmap. Discontinuities appear along chart boundaries.

Tech stack

• C++20
• OpenGL 4.6 – rendering and GPU-based computation
• xatlas – lightmap atlas generation and UV parametrization
• Intel Embree – BVH construction and ray intersection acceleration
• Intel Open Image Denoise (OIDN) – denoising of path-traced lightmaps
• ImGui – user interface
